You have already had the convenience of a 3-way switch when you have ever entered a hallway and flipped on a light on one side, and then on the other side. The wiring is confusing to look at, and many homeowners seek a 3-way switch wiring diagram that clarifies what is going on. The good news is that after having the idea, the entire system begins to work.

When installed with the correct configuration, a 3-way light switch wiring can enable you to get the same light on one switch and then also on a second switch, and still have your 3-way light switch.

Such a switch arrangement is very common in contemporary homes. Three-way switch wiring, provided by electricians, is commonly employed in stairway lighting, halls, and big rooms where individuals have to change their location along the tunnel.

If you know how to wire a 3-way switch, it may assist you in learning how your lights operate and also may allow you to make simple upgrades that are easier. This guide will help you in learning the basics.

What Is a 3-Way Switch?

A three-way switch is a special type of electrical switch that contains the function of operating a single light facility at two sites. A 3-way switch differs in that, unlike a regular switch, which provides only on/off control, it offers multiple electrical paths that can route the light to either switch.

The switch has three terminals inside. One of them is referred to as the common terminal, and the other two terminals as traveler terminals. These traveler wires unite both switches with each other and form alternative paths of electricity. And this is the fundamentals of the three-way switch wiring, and it is what enables both switches to operate the same light.

After you have installed it correctly, you will be able to turn the light on with one switch and turn it off with the other. It is that ease of use which causes the 3-way switch wiring to be applied in so many houses today.

How Does a 3-Way Switch Work?

In a typical 3-way switch wiring diagram, power enters the circuit at the first switch. Then it passes through one of two traveler wires, which join the two switches. This is then passed to the light fitting by the second switch.

When the electrical line is complete, the light goes on. In case the route is blocked, the light is switched off. Since the switches can regulate the flow of electricity, the switches can switch the light either way.

This smart switching design is the one that renders the process of wiring a 3-way switch so practical in those places where people are going back and forth between two access points.

Understanding a Simple 3-Way Switch Diagram

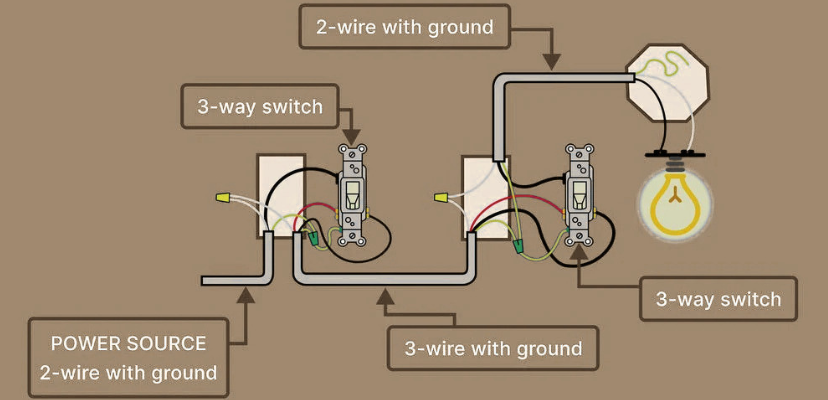

At first glance, a basic 3-way switch diagram could seem complicated. Nevertheless, the design is more comprehensible when divided into parts.

An average 3-way switch wiring diagram consists of:

• The power supply
• Two switches
• Traveler wires
• A light
• A neutral wiring.

The power source directs the electricity to the first switch. Then, it goes on the traveler wires to the second switch.

The other switch then completes or breaks the circuit to the light. The light is switched on when the circuit is complete. As the circuit is broken, the light goes off.

As soon as you have this direction, you can visualise three-way switch wiring much more easily.

How to Wire a 3-Way Switch

When attempting to learn how to wire a 3-way switch, the wiring order will be very easy to follow.

The installation can be done by many homeowners with a basic understanding of electricity and safety measures.

• The first step is to switch the electricity off at the breaker panel. Working with electrical systems, it is always first of all safety.
• Then, attach the incoming power wire to the common terminal of the first switch.
• Next, connect the two traveler wires to the traveler terminals of the same switch.
• These traveller wires are then connected to the second switch box. Connect traveler wires again on the traveler terminals on the second switching.
• Lastly, attach the common terminal of the second switch to the wiring that reaches the light that will be installed.

After connecting the neutral wire and ground wires, the wiring system is complete for a 3-way light switch. When power is reconnected, the light should be controlled by either switch.

Where 3 Way Switch Wiring Works Best

Three-way switch wiring is available in most parts of a home where it is convenient to control the lighting. One of the most popular locations of this kind of installation is the staircases. The bottom and top have a switch so that one can control the light safely as one moves between the floors.

Hallways also have the advantage of 3-way switch wiring since the lights on the hallways can be switched off at one end and switched on at the other end. The 3-way light switch wiring is also used in large living rooms, garages, and bedrooms with two entrances to allow the lighting to be more accessible.

This arrangement may appear small, yet it creates home movement in the day-to-day life very comfortable.

Common Problems When Wiring a 3 Way Switch

Most DIY homeowners usually encounter problems during the wiring of a 3-way switch, even with experience. Among the most frequent errors is the connection of wires to the wrong terminal.

The shared terminal should be connected to either the source of power or the wire leading to the light outfit. This is because the traveler wires should be connected to traveler terminals. These wires when mixed may cause the switches to act in the wrong manner.

The other error occurs when the neutral wire is laid through the switches by mistake. Most 3-way switch designs instead have the neutral line running directly to the light.

It may be worthwhile to invest one or two minutes in rechecking the 3-way switch wiring diagram to avoid much troubleshooting down the line.

Why Homeowners Choose 3 Way Switch Systems

Contemporary houses are very much concerned with comfort and convenience, and three-way switch wiring suits this concept perfectly well. It provides homeowners with increased lighting control and eliminates the nuisance of strolling through dark rooms.

After knowing how a 3-way switch functions, the system does not seem complex anymore. Rather, it merely seems like a clever and practical design.
